EVE LF105 3.2V 105Ah LiFePO4 Lithium Battery Rechargeable Lithium Battery Cells With Original QR Code Grade A
We provide 3.2V105Ah high-power Lithium iron phosphate LiFePO4 prismatic cell which has long cycles for used for electric vehicles, golf cart, solar system, energy storage system, yacht, etc.
(1) We ordered the batteries directly from EVE. Grade A, brand new, guaranteed sufficient capacity.
(2) We will give you bus bars and nuts for free. (Busbar material-copper, 1pcs 105AH battery ---1pcs busbar, 2pcs screws and 2pcs washers).
requirements about that, please let we know.
(3) These batteries wth certificates, such as CE, MSDS, UN, UL, if you need them, please contact us.
|
Item |
Parameter |
Remark |
|
|
Typical Capacity |
106.5 Ah @ 1.0C discharge |
Discharge current 1.0C with 2.5V cut off. (25±2)℃
|
|
|
Minimum Capacity |
105.0 Ah @ 1.0C discharge |
||
|
Typical Voltage |
3.2V |
Under 0.5CA cc-discharge
|
|
|
AC Impedance Resistance |
0.32mΩ±0.05mΩ |
|
|
|
Charge current（CC-CV） |
Max Charge Current |
1C |
The maximum charge current of the battery does not exceed 1C Cut under 0℃～45℃. |
|
Cut-off Voltage |
3.65V |
||
|
Discharge |
Max Discharge Current |
3C |
Preference value. |
|
Cut-off Voltage |
2.5V |
||
|
Charging time |
Standard |
2.0h |
0.5C charge (time is reference) |
|
Quick-charge |
1.0h |
1C charge (time is reference) |
|
|
Recommend SOC Window |
SOC：10%~90% |
|
|
|
Charging Temperature |
0℃~65℃ |
|
|
|
Discharging Temperature |
-35℃~65℃ |
|
|
|
Storage Temperature |
One month |
-20℃~45℃ |
|
|
One year |
0℃~35℃ |
|
|
|
Storage Humidity |
＜70﹪ |
|
|
|
Cycle life |
≥4000cycle |
25℃, 80% DOD |
|
|
Weight |
1980g±60g |
|
|
|

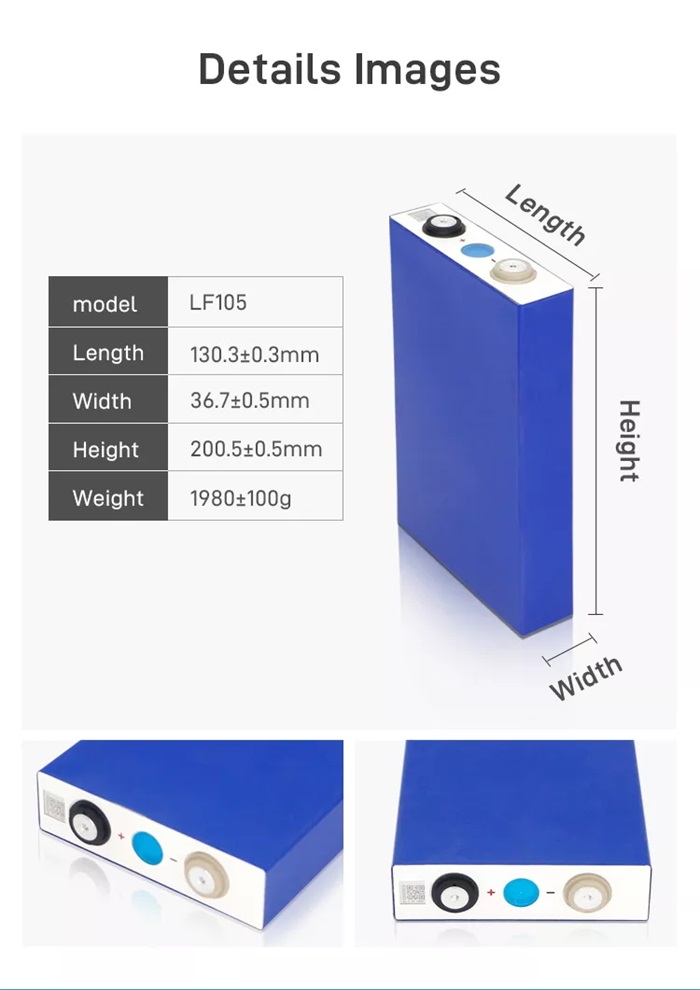

Dimension(W*T*H) |
130.3*36.35*200.5mm |
|
|
