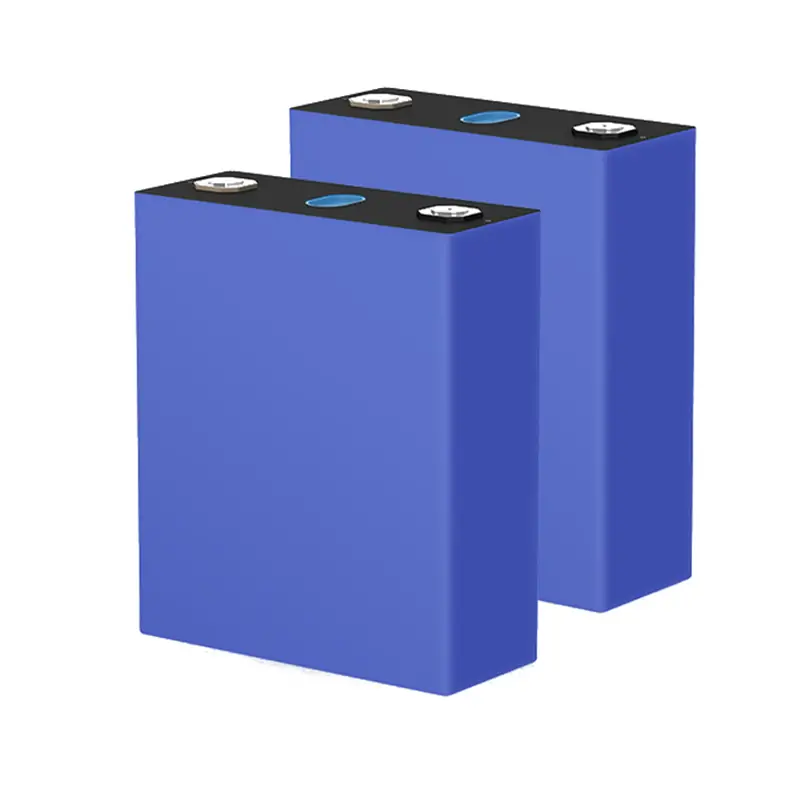

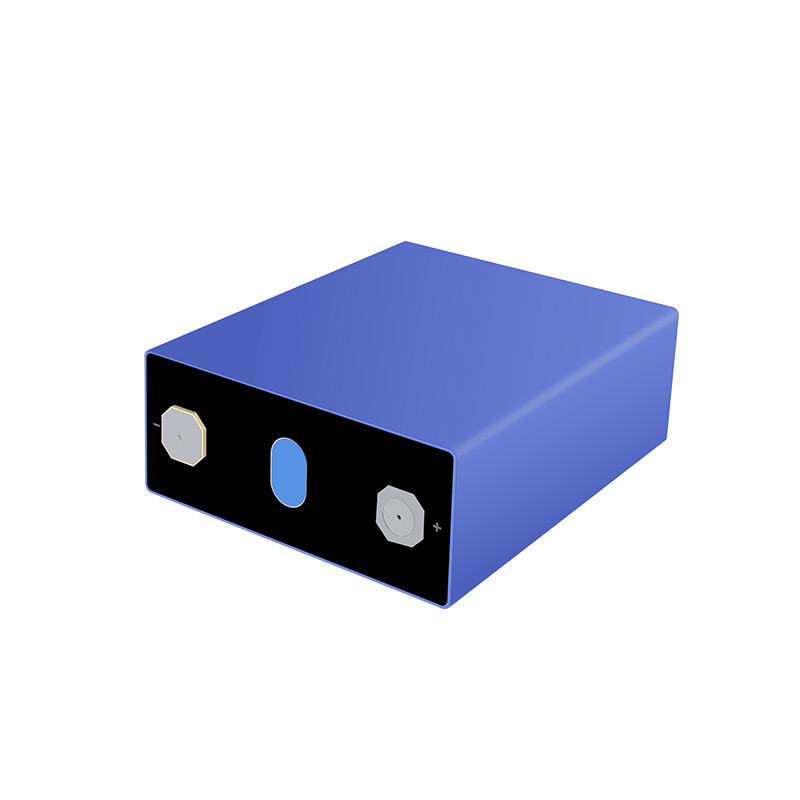

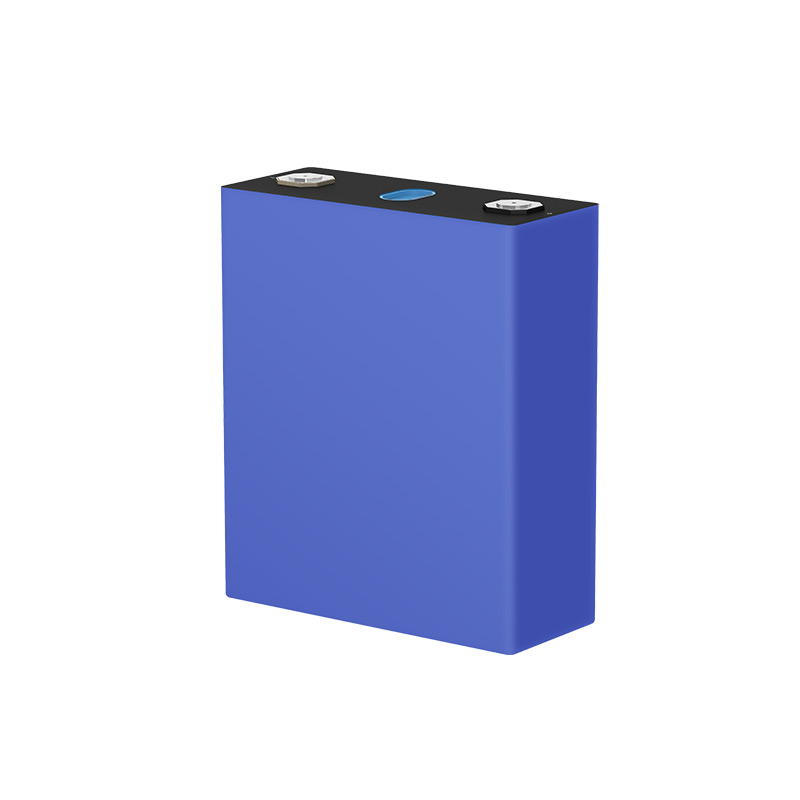

EVE MB31 3.2V 314Ah Prismatic LiFePO4 LFP Battery cell with long life cycle of up to 8000 cycles for ess
Automated: automated production/Prodcut consistency
Ultra-Safe: Explosion-proof / No leakage
Stable: Low IR / High CRD/ Discharge Steadily
Customized: Customer Demand Customization
Super Long: Ultra-long life cycle
Environmentally Friendly: Passed environmental/system certification
| Specification Parameters | |
|---|---|
| Nominal Capacity | 314Ah |
| Nominal Voltage | 3.2V |
| Initial IR | 0.1 8 mΩ ±0.05 mΩ |
| Weight | 5 600 g ±300 g |
| Charging Cut-off Voltage | 3.65 V |
| Discharging Cut-off V oltage | 2.5 V T >0℃ 2.0 V T ≤0℃ |
| Charging Temperature | 0~60℃ |
| Discharging Temperature | - 30~60℃ |
| Storage Temperature | 0~35℃ |
| Model Name | MB31 |
| Cycle Life | 8000 Cycles |
| Standard Charging Power | 0.5P |
| Standard Discharging Power | 0.5P |

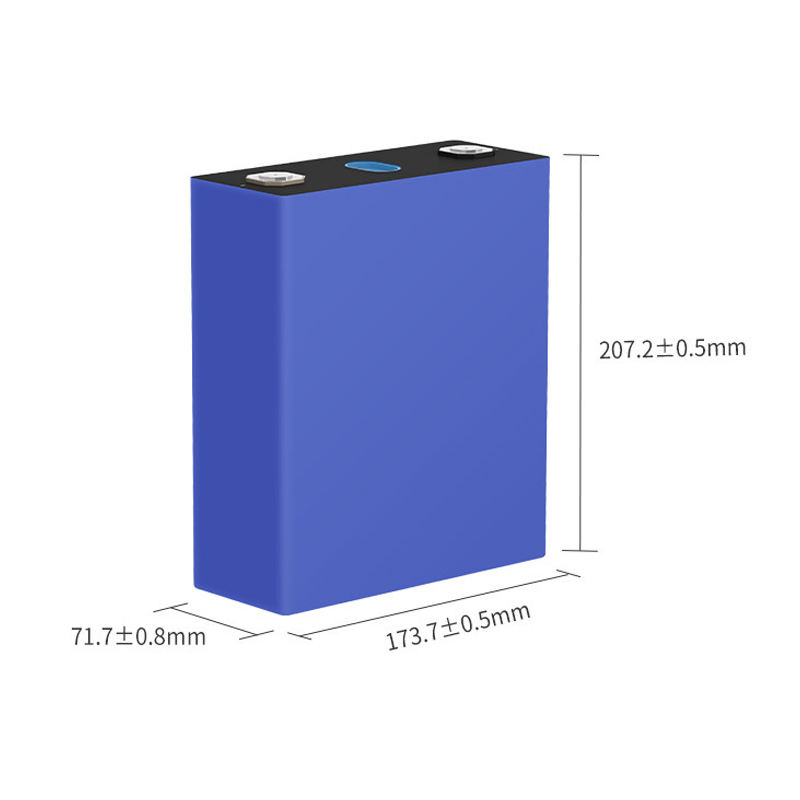

| Height(H) with terminal | 207.2 mm ±0.5 mm |
| Height(h) without terminal | 204.6 mm ±0.5 mm |
| Length | 173.7 mm ±0.5 mm |
| Thickness | 71.7 mm ±0.8 mm |
