GBS 3.2V 40Ah Lithium Prismatic Lifepo4 CellThe LiFePO4 battery cells which produced by GBS have advantages like various cells with big capacity, low internal impedance, good high & low tempt performance, small temperature increase, good consistency and long cycle life.Cell parameters:NoItemPara

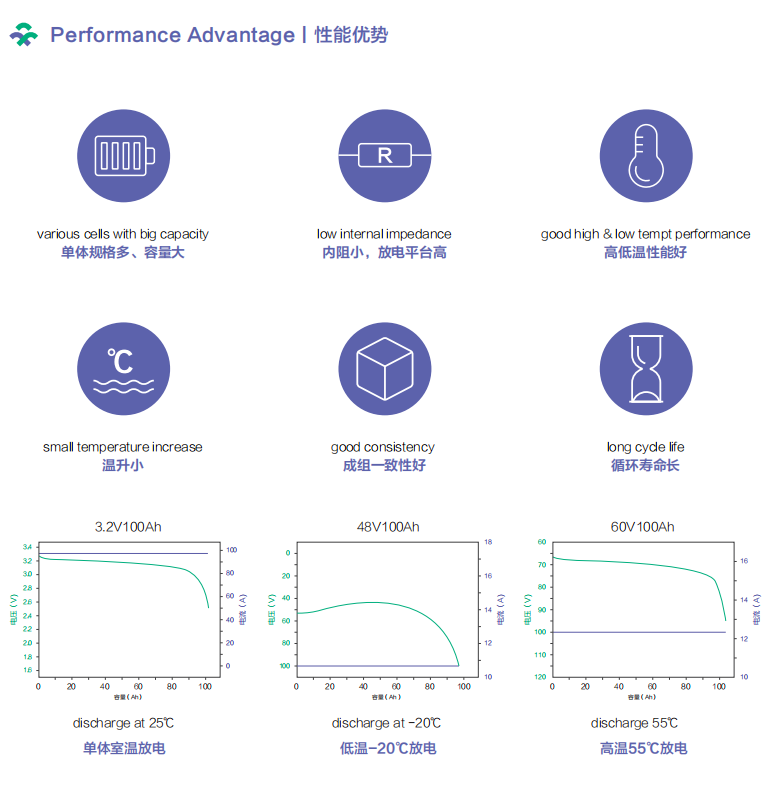

The LiFePO4 battery cells which produced by GBS have advantages like various cells with big capacity, low internal impedance, good high & low tempt performance, small temperature increase, good consistency and long cycle life.
No | Item | Parameter Specification |
1 | Model | GBS-LFP40h-A |
2 | Nominal Capacity | 40Ah |
3 | Minimum Capacity | 40Ah |
4 | Nominal Voltage | 3.2 V |
5 | Internal Resistance | ≤0.6mΩ |
6 | Standard Charge | 0.25C |
7 | Fast Charge | 1.0C |
8 | End of Charge | 3.55V |
9 | Standard Discharge | 0.5C |
10 | Max Discharge | 3C |
11 | Instantaneous Discharge | 5C(10S) |
12 | End of Discharge | 2.5V |
13 | Working Temperature | -20~60℃ |
14 | Cycle Life | >3000 cycles（0.5C） |
15 | Battery Weight | 1.5±0.1kg |
16 | Shell Material | PP |

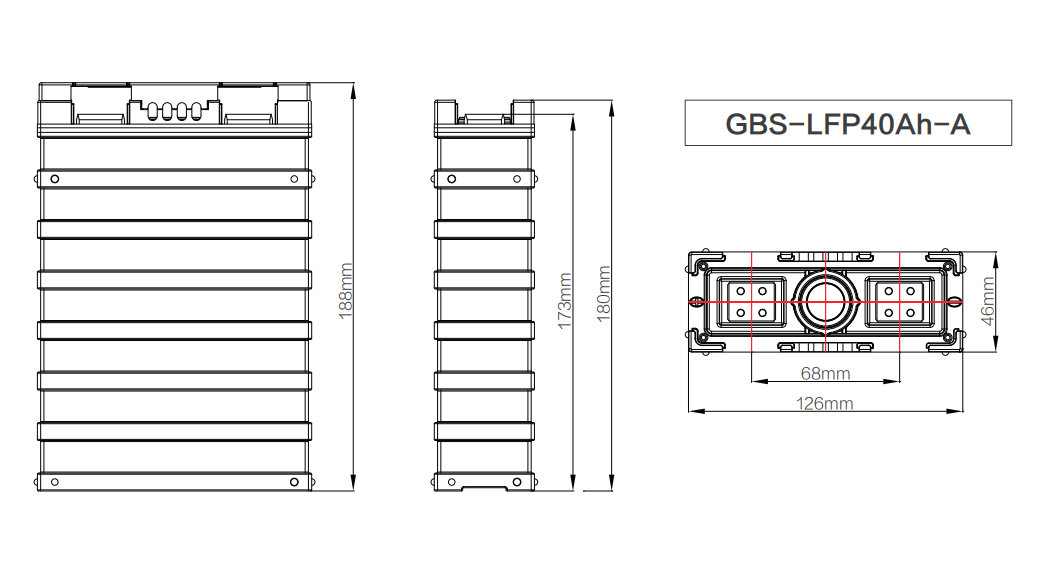

17 | Cell Dimensions | 126X46X188±1mm |
