Headway 38120HP 8Ah 3.2V LiFePO4 Battery CellHeadway 38120Hp 3.2V 8Ah LiFePO4 Battery cell is kind of high power lithium lifepo4 battery with maximum 15C continuous discharge rate and more than 2000 times cycle life, used for EV and other with high discharge rate demand.Standard discharge: 5CMax dis

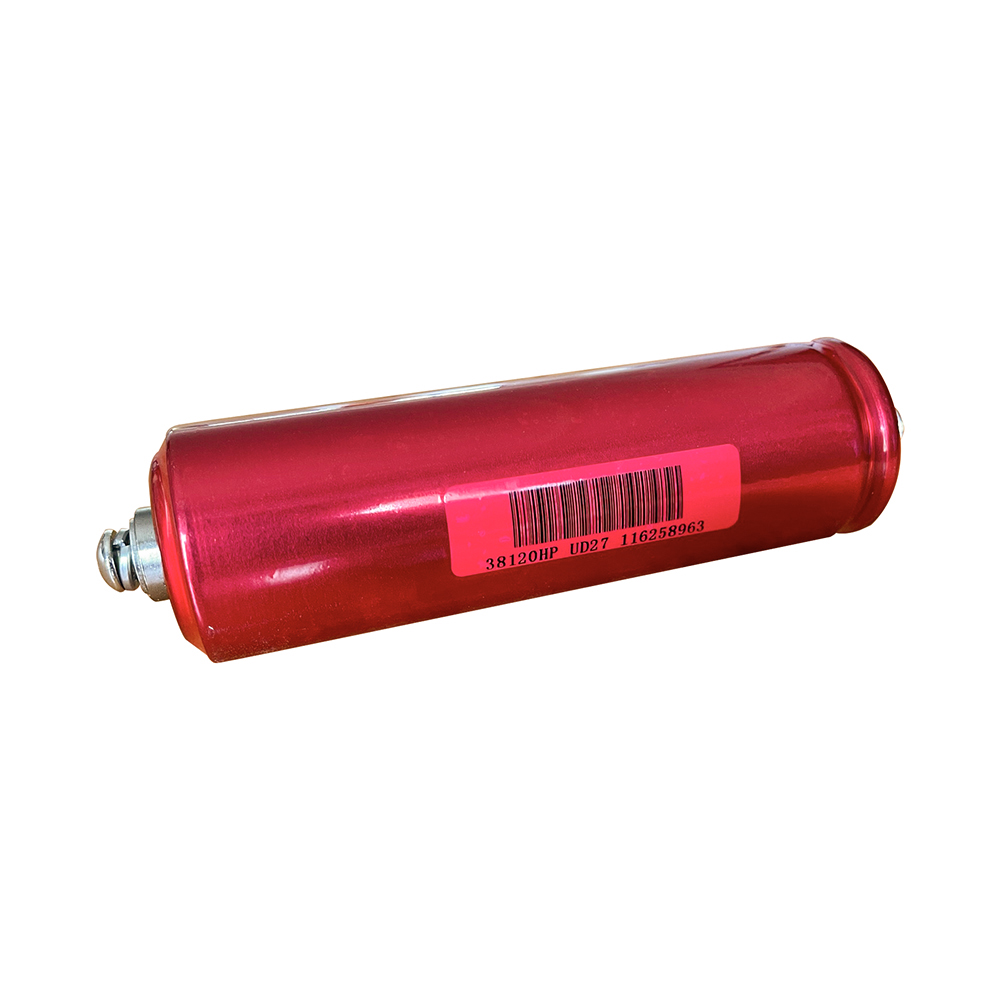

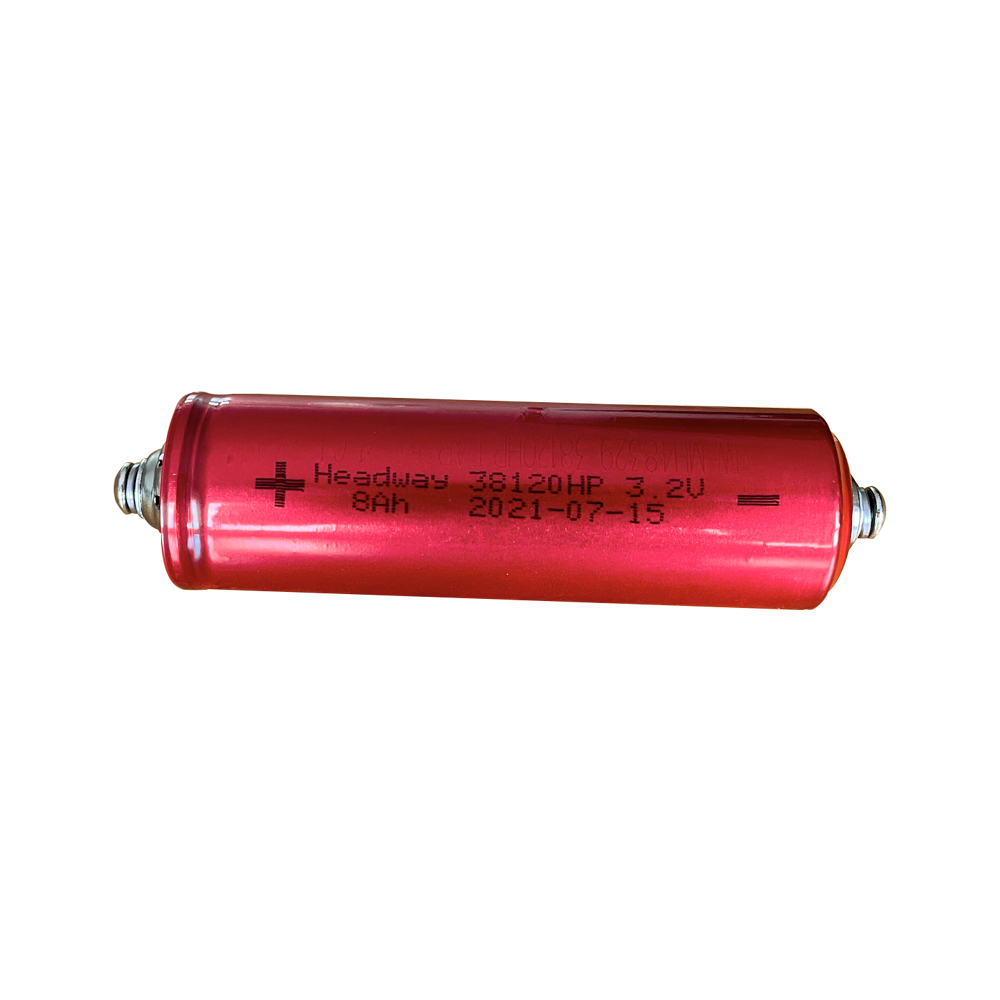

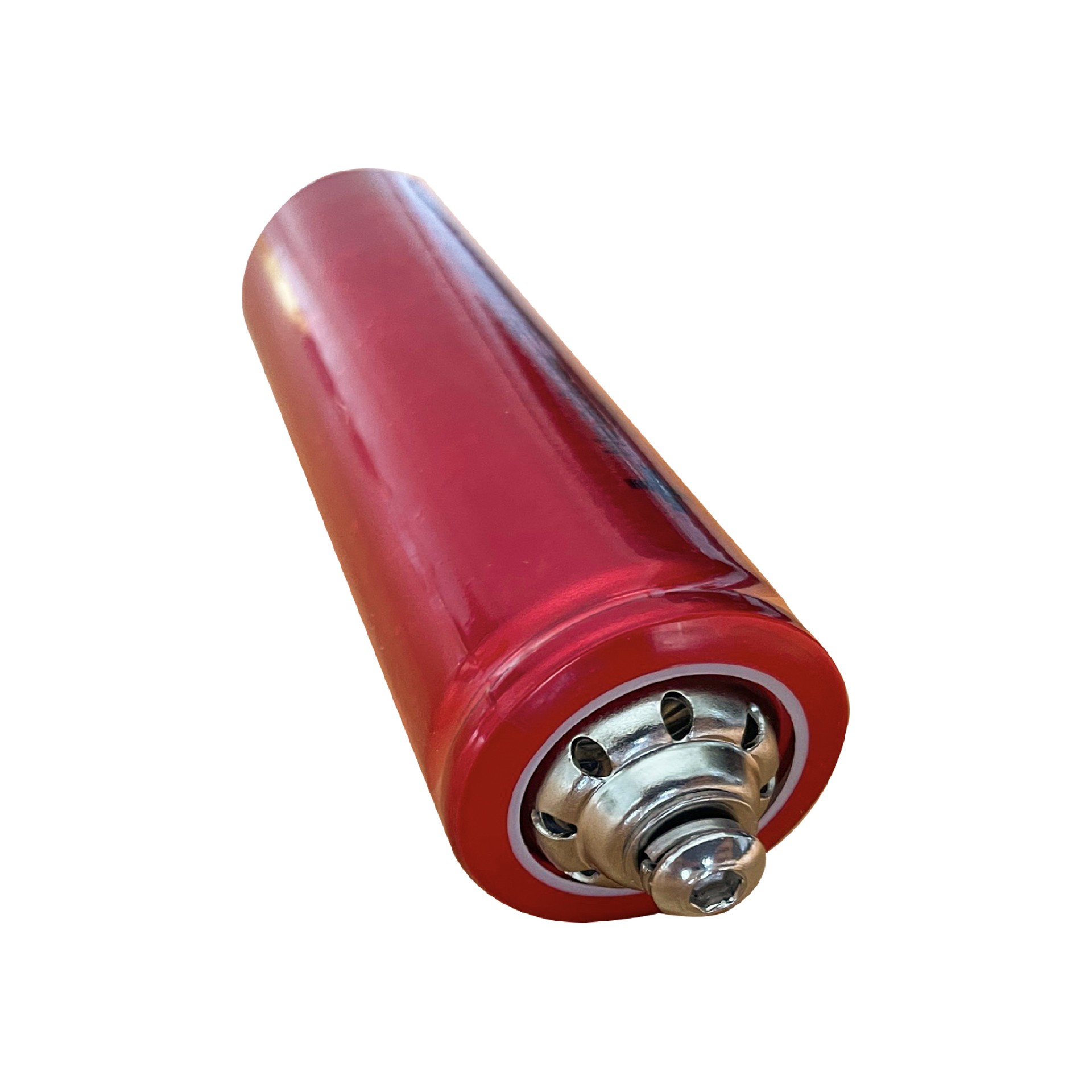

Headway 38120HP 8Ah 3.2V LiFePO4 Battery Cell
Headway 38120Hp 3.2V 8Ah LiFePO4 Battery cell is kind of high power lithium lifepo4 battery with maximum 15C continuous discharge rate and more than 2000 times cycle life, used for EV and other with high discharge rate demand.
Standard discharge: 5C
Max discharge: 15C
Max instant discharge: 30C
1. Super high cycle life
2. Higher energy density
3. Safety, no explosion
4. Lighter and smaller
5. No memory effect
6. Wider operation temperature
7. Higher peak power
Item | Parameters |
Nominal capacity | 8Ah @ 1C |
Minimum capacity | 7.5Ah @ 1C |
Nominal voltage | 3.2V |
Charging cut-off voltage | 3.65 ±0.05 V |
Discharging cut-off voltage | 2.5 ±0.05 V |
Charging current | Standard charging current: 3C |
Max. charging current: 10C (T≥10℃) | |
Max. charging current: 3C (10℃≥T≥0℃) | |
Max. charging current: 0.1C (0℃≥T≥-10℃) | |
Discharging current | Standard discharging current: 5C Max. continuous discharging current: 15C Max. pulse discharging current: 30C (30S) |
The surface temperature of the cell rises | 5C Continuous discharging: ≤15℃ 10C Continuous discharging: ≤25℃ |
Operating temperature | Charge: 0～45℃ Discharge: -20～60℃ |
Cycle life | ≥2000 cycles 80%DOD |
Storage humidity | 0～90%RH |
Internal resistance | ≤2.5mOhm(AC，1000HZ) |
Dimension | 136mm(H)*38.5mm(D) |
Weight | 330±5g |

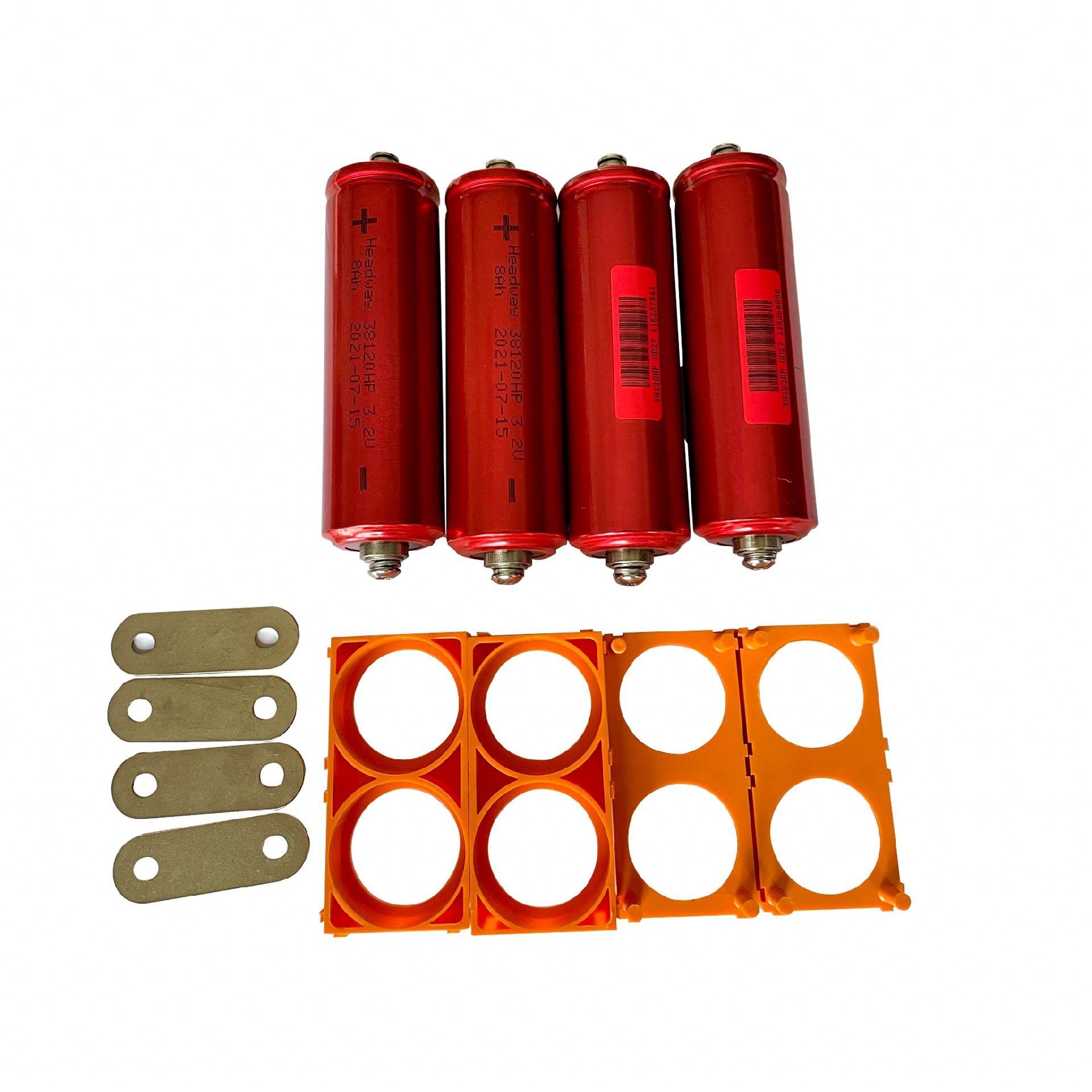

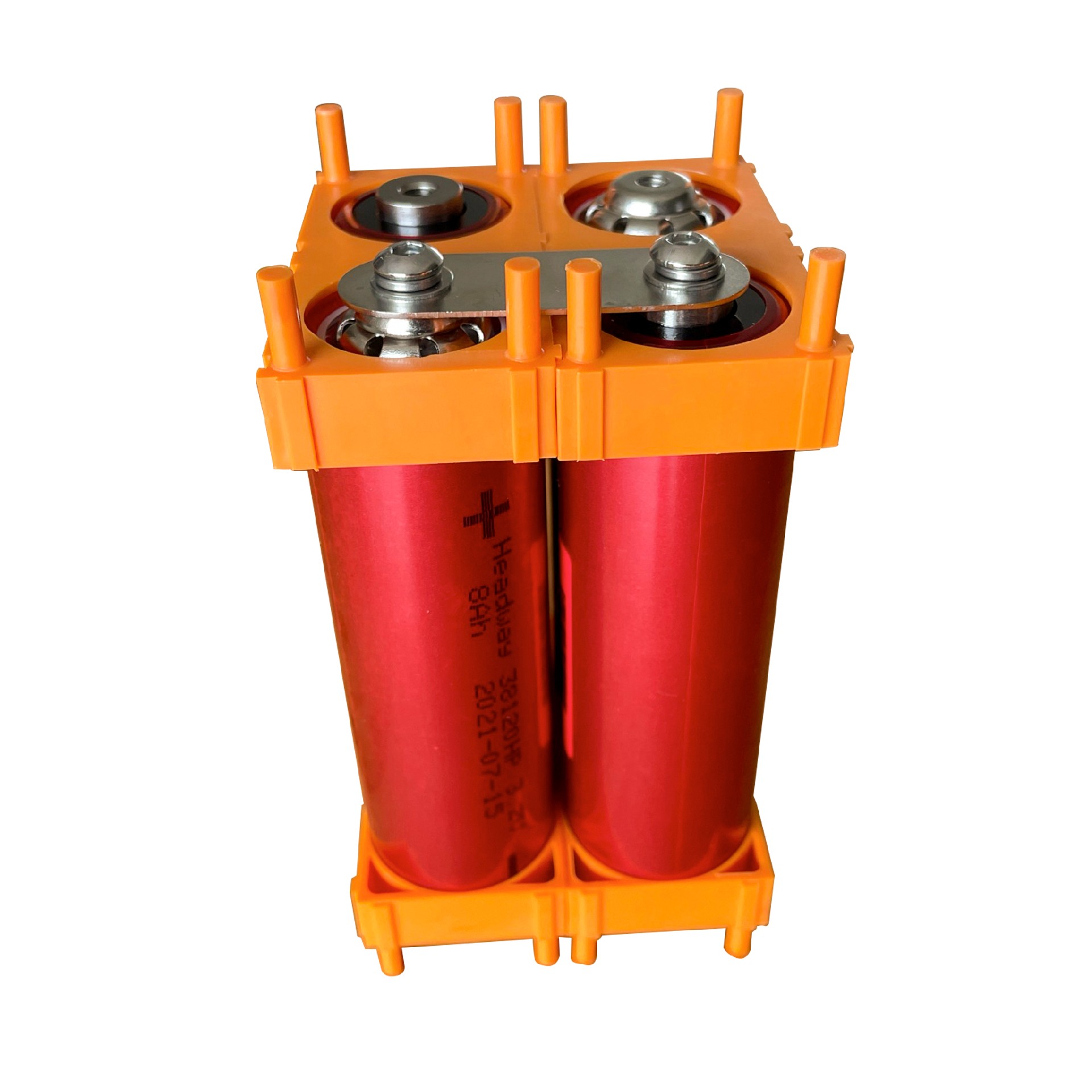

*We provide the holders and busbars for the easy connection of 38120hp LiFePO4 Battery Cells
Applications
The Iron LFP Battery is a versatile battery that can be used in a variety of applications. It is the perfect solution for both residential and commercial energy storage systems. The Iron LFP Battery is ideal for:
1. Home energy storage
2. Commercial energy storage
3. Telecommunications backup power
4. Emergency backup power
5. Uninterrupted Power Supply (UPS)
6. Off-grid solar power systems
7. Peak shaving
8. Grid stabilization
